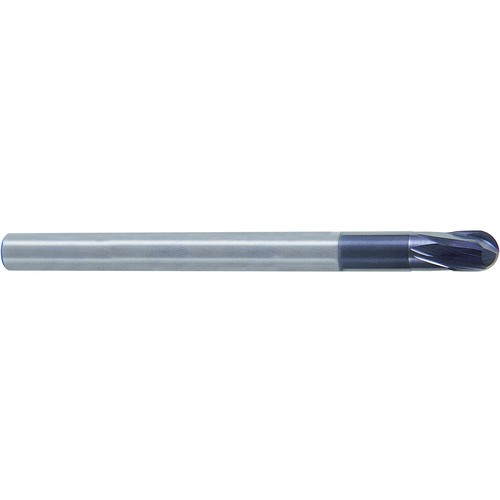

Ball Nose End Mill; 3/8″ Dia. × 3/8″ LOC × 3/8″ Shank Dia. × 4″ OAL ; 2 FL ; Carbide ; Y-Coating ; Series EM109
BN End Mill; 3/8″ Dia. × 3/8″ LOC × 3/8″ Shank Dia. × 4″ OAL ; 2 FL ; Carbide ; AlCrN ; Series EM109
| Cutting Diameter (DC) | 3/8″ | Applicable Material | | Steel | |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Corner Radius (RE) | 3/16″ |
| Depth of Cut Maximum (APMX) | 3/8″ | Neck Diameter (DN) | 0.371″ |
| Overall Length (OAL) | 4″ | Tool Type | Ballnose Endmill |
| Cutting Edge Material | Carbide | Length Group | Stub |
| Coating | AlCrN | End Shape | Ball Nose |
| Flute Count (NOF) | 2 | Decimal Equivalent | 0.375″ |
| Flute Helix Angle (FHA) | 15 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | EM109 |
| Usable Length (LU) | 3/4″ |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.5
Package Width
0.75
Package Height
0.75
Package Weight
0.1
