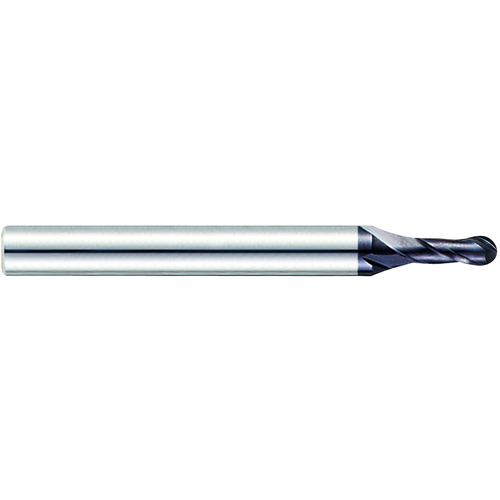

Ball Nose End Mill; 4/77″ Dia. × 0.138″ LOC × 1/8″ Shank Dia. × 4-1/4″ OAL ; 2 FL ; Carbide ; Y-Coating ; Series GM960
BN End Mill; 0.0519″ Dia. × 0.138″ LOC × 1/8″ Shank Dia. × 4-1/4″ OAL ; 2 FL ; Carbide ; AlCrN ; Series GM960
| Cutting Diameter (DC) | 0.0519″ | Usable Length (LU) | 1-1/2″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Applicable Material | | Steel | |
| Depth of Cut Maximum (APMX) | 0.138″ | Corner Radius (RE) | 0.026″ |
| Overall Length (OAL) | 4-1/4″ | Tool Type | Ballnose Endmill |
| Cutting Edge Material | Carbide | Length Group | Miniature |
| Coating | AlCrN | End Shape | Ball Nose |
| Flute Count (NOF) | 2 | Decimal Equivalent | 0.052″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | GM960 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
2.25
Package Width
0.625
Package Height
0.625
Package Weight
0.1
