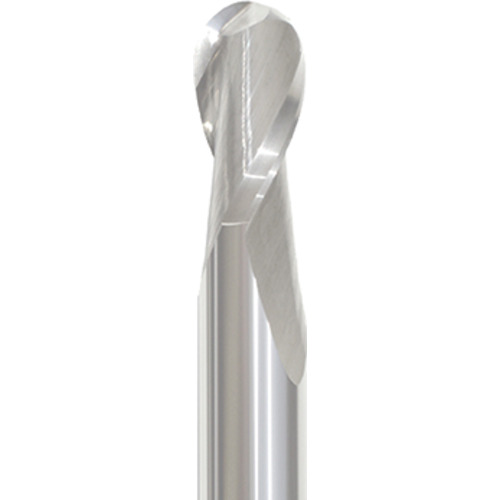

25/64-2FL-SE-REG BN TiCN
BN End Mill; 25/64″ Dia. × 1″ LOC × 7/16″ Shank Dia. × 2-3/4″ OAL ; 2 FL ; Carbide ; TiCN ; Series 221
| Cutting Diameter (DC) | 25/64″ | Application | Profiling | Plunging | Profile Cutting | Radiusing | Radius Slotting |
| Connection Diameter Machine Side (DCONMS) | 7/16″ | Grade | C-2 Sub-Micron |
| Depth of Cut Maximum (APMX) | 1″ | Length Group | Regular |
| Overall Length (OAL) | 2-3/4″ | End Shape | Ballnose |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.3906″ |
| Coating | TiCN | Series/List # | 221 |
| Flute Count (NOF) | 2 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees | Center Cutting | Yes |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.170
