7/64-3FL-SE-REG BN

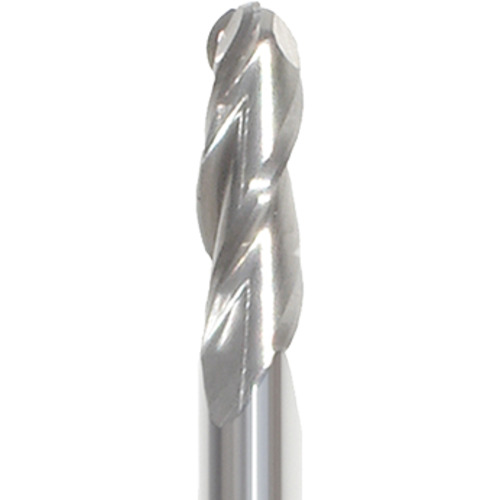

BN End Mill; 7/64″ Dia. × 3/8″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 3 FL ; Carbide ; Uncoated ; Series 222
| Cutting Diameter (DC) | 7/64″ | Application | Profiling | Plunging | Profile Cutting | Radiusing | Radius Slotting |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Grade | C-2 Sub-Micron |
| Depth of Cut Maximum (APMX) | 3/8″ | Length Group | Regular |
| Overall Length (OAL) | 1-1/2″ | End Shape | Ballnose |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.1094″ |
| Coating | Uncoated | Series/List # | 222 |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees | Center Cutting | Yes |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.01
