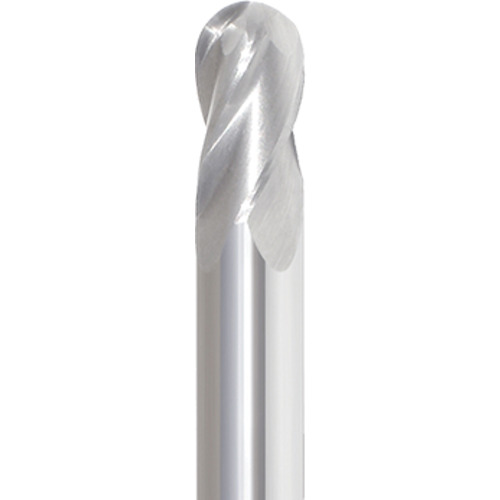

20mm-4FL-SE-REG BN (38mm LOC)
BN End Mill; 20 mm Dia. × 38 mm LOC × 20 mm Shank Dia. × 102 mm OAL ; 4 FL ; Carbide ; Uncoated ; Series 223
| Cutting Diameter (DC) | 20 mm | Application | Profiling | Ramping | Profile Cutting | Radiusing | Radius Slotting |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Grade | C-2 Sub-Micron |
| Depth of Cut Maximum (APMX) | 38 mm | Length Group | Regular |
| Overall Length (OAL) | 102 mm | End Shape | Ballnose |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.7874″ |
| Coating | Uncoated | Series/List # | 223 |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees | Center Cutting | Yes |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.750
