7/32-4FL-SE-STUB BN

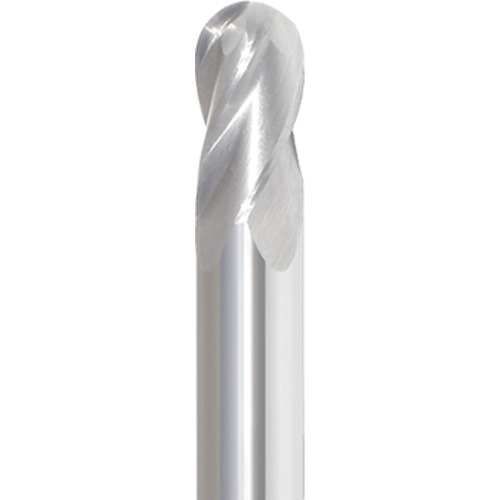

BN End Mill; 7/32″ Dia. × 7/16″ LOC × 1/4″ Shank Dia. × 2″ OAL ; 4 FL ; Carbide ; Uncoated ; Series 220
| Cutting Diameter (DC) | 7/32″ | Application | Profiling | Ramping | Profile Cutting | Radiusing | Radius Slotting |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Grade | C-2 Sub-Micron |
| Depth of Cut Maximum (APMX) | 7/16″ | Length Group | Stub |
| Overall Length (OAL) | 2″ | End Shape | Ballnose |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.2188″ |
| Coating | Uncoated | Series/List # | 220 |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees | Center Cutting | Yes |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.040
