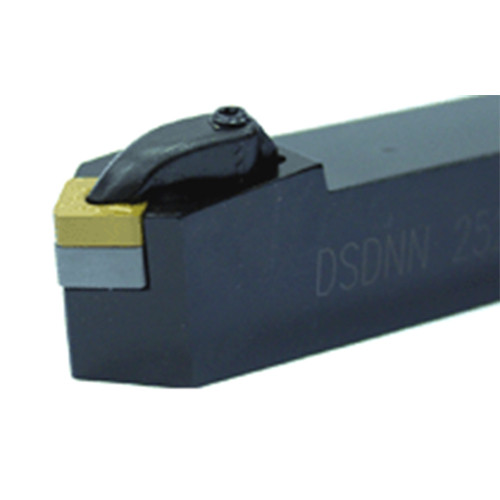

DSDNN 16-5

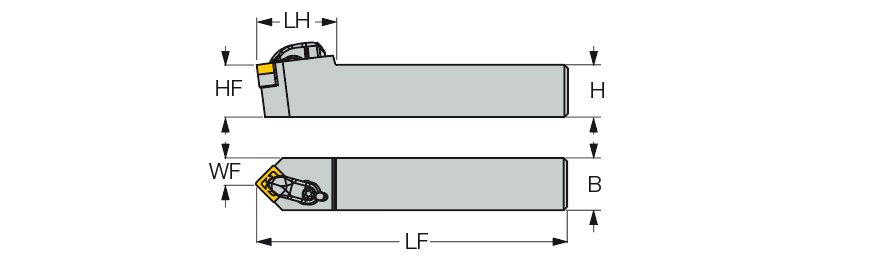

| Shank Height (H) | 1″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Width (B) | 1″ | Rake Angle Radial (GAMF) | -8.5 Degrees |
| Functional Length (LF) | 6″ | Body Material | Steel |
| Head Length (LH) | 1.65″ | Cutting Position | External |
| Functional Width (WF) | 1/2″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 5/8″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Neutral | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | SN..54. | Insert Style | 6″ |
| Application | | Ext. 90° Square 45° Approach | |
Product Features
| Family Description | 45° lead angle R-Clamp external turning tools carrying ISO negative SNMG inserts. | Country of Origin | S.Korea |
Shipping Info
Package Length
6.25000
Package Width
2.00000
Package Height
2.00000
Package Weight
1.763
