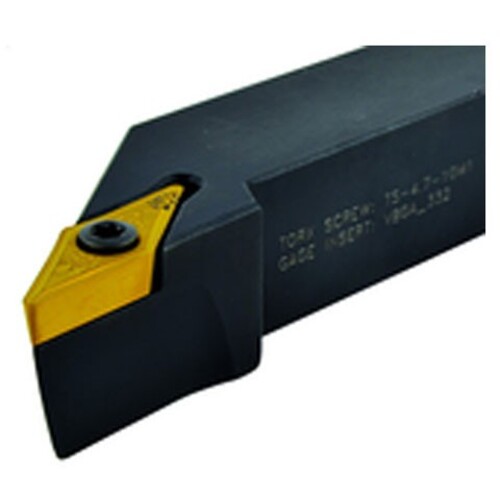

SVJBR12-3B Tool Holder
Turning Toolholder; 4-1/2″ OAL × 3/4″ Shank Height × 3/4″ Shank Width × 3/4″ Shank Dia. × 1.25 LH ; Right Hand ; Steel
| Shank Height (H) | 3/4″ | Coolant Supply Property (CSP) | External |
| Shank Width (B) | 3/4″ | Shank Type | Square |
| Overall Length (OAL) | 4-1/2″ | Body Material | Steel |
| Head Length (LH) | 1.25 | End Chamfer Angle (ECA) | 3 Degrees |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Tool Type | Turning Toolholders-Standard |
| Inscribed Circle Diameter (IC) | 3/8″ | Style | SVJBR12-3B |
| Cutting Direction (HAND) | Right Hand | Insert Style | SVJB |
| Master Insert Identification (MIID) | VB_T |
Product Features
| Remarks | •Style J •Negative 3° Cutting Edge Angle for 5° Positive 35° Diamond VB_T Inserts | Country of Origin | USA |
Shipping Info
Package Length
5.30000
Package Width
1.10000
Package Height
1.20000
Package Weight
0.65
