DDJNL 16-3D

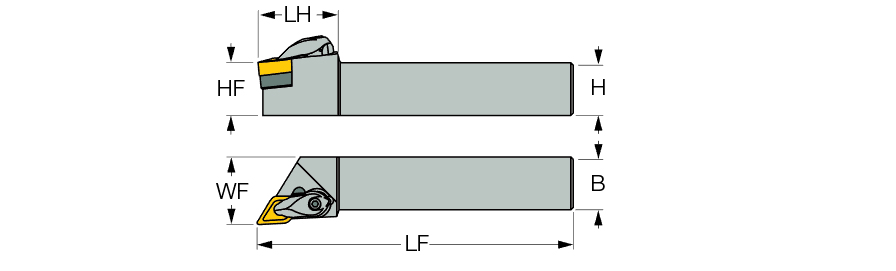

| Shank Height (H) | 1″ | Rake Angle Axial (GAMP) | -7 Degrees |
| Shank Width (B) | 1″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Length (LF) | 6″ | Body Material | Steel |
| Head Length (LH) | 1.18″ | Cutting Position | External |
| Functional Width (WF) | 1-1/4″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand | Style | DDJNL163D |
| Master Insert Identification (MIID) | DNMG 33. | Insert Style | 6″ |
| Application | | Ext. 55° Diamond 93° Approach | |
Product Features

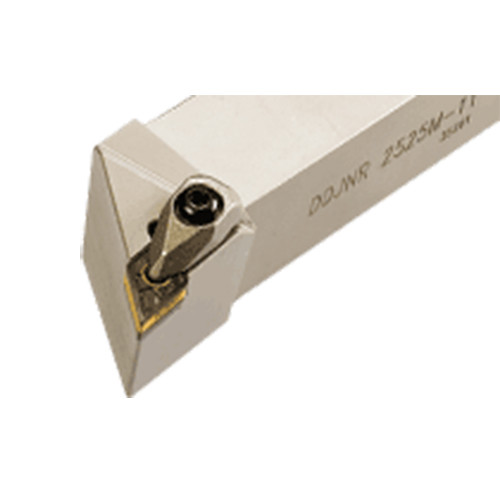

| Family Description | R-Clamp tools with 93° lead angle carrying 55° negative rhombic inserts. | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.002
