REB-.500.8753.12Z5250C5

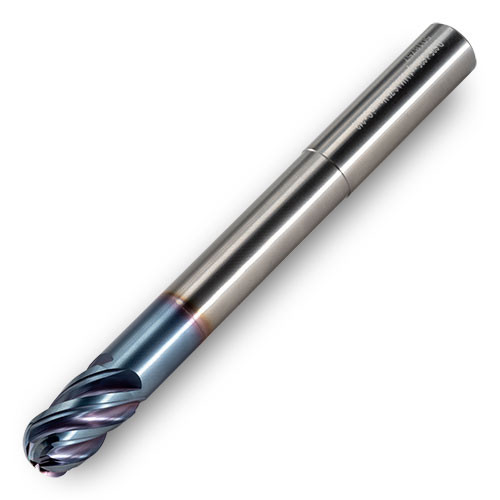

BN End Mill; 1/2″ Dia. × 7/8″ LOC × 1/2″ Shank Dia. × 5″ OAL ; 5 FL
| Cutting Diameter (DC) | 1/2″ | Application | | Helical Interpolation | Rampdown | Shouldering | |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Corner Radius (RE) | 1/4″ |
| Depth of Cut Maximum (APMX) | 7/8″ | Tool Type | Center Cut|Single-End |
| Overall Length (OAL) | 5″ | End Shape | Square |
| Flute Count (NOF) | 5 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 38 Degrees | Decimal Equivalent | 0.5″ |
| Shank Type | Round | Measurement Type | Inch |
| Usable Length (LU) | 3-1/8″ |
Product Features
| Country of Origin | Usa |
Shipping Info
Package Weight
0.000
