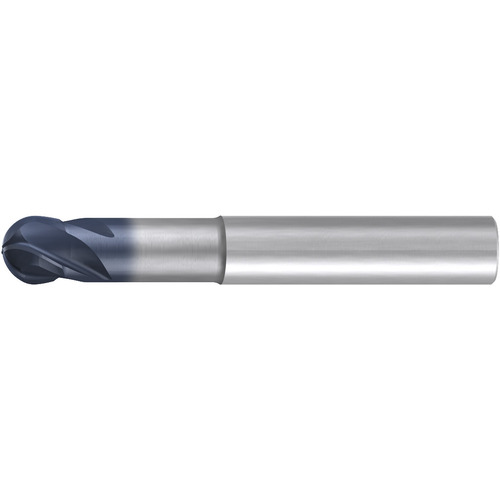

Ballnose End Mill; 5/16″ Dia. × 5/16″ Shank Dia. × 2-1/2″ OAL ; 4 FL ; Carbide ; AlCr ; Series 2942A
BN End Mill; 5/16″ Dia. × 5/16″ Shank Dia. × 2-1/2″ OAL ; 4 FL ; Carbide ; AlCr ; Series 2942A
| Cutting Diameter (DC) | 5/16″ | Application | | Finishing | |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Tool Type | Hard-Cut |
| Overall Length (OAL) | 2-1/2″ | Length Group | Stub |
| Cutting Edge Material | Carbide | End Shape | Ball Nose |
| Coating | AlCr | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.3125″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 2942A |
| Usable Length (LU) | 9/32″ | Cutting Direction (HAND) | Right Hand |
| Applicable Material | | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Remarks | • Hard-Cut carbide ball nose end mill for finishing applications in many materials, including hard materials • Design with four flutes enables finishing with very good surface quality • Suitable for high speed machining finishing • TIALN coated for additional heat and wear resistance | Country of Origin | Germany |
Shipping Info
Package Weight
0.09
