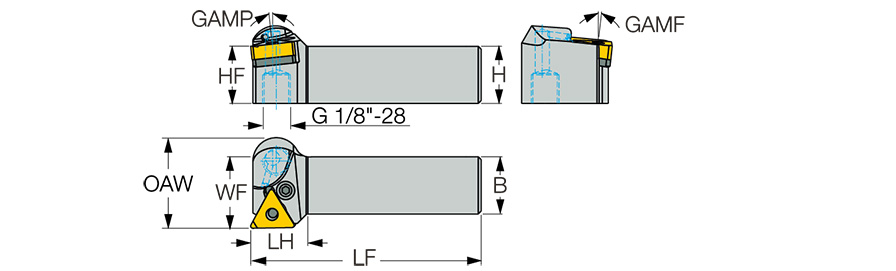

PTGNL 2525M-16X-JHP
| Shank Height (H) | 25 mm | Application | | Ext. 60° Triangle 91° Approach | |
| Shank Width (B) | 25 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 150 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 20 mm | Body Material | Steel |
| Functional Width (WF) | 32 mm | Cutting Position | External |
| Inscribed Circle Diameter (IC) | 9.52 mm | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Metric |
| Master Insert Identification (MIID) | TNMX 1606, TNMG 1604 | Style | SCLCL08-3A |
Product Features
| Family Description | 91° entering angle lever lock external turning tools with Channels for High-Pressure Coolant carrying negative triangular inserts | Country of Origin | Israel |
| Remarks | Supplied with TTX 3 seat for TNMX 1606.. inserts and TTN 3 seat for TNMG 1604.. inserts |
Shipping Info
Package Weight
1.715
