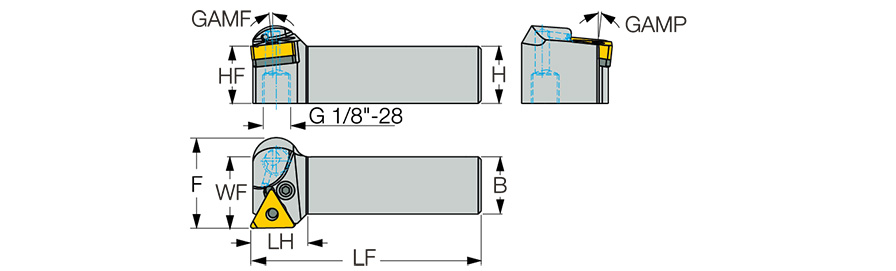

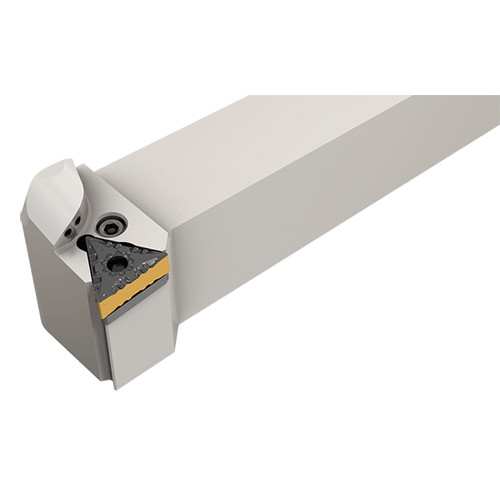

PTGNR 16-3X-JHP
| Shank Height (H) | 1″ | Application | | Ext. 60° Triangle 91° Approach | |
| Shank Width (B) | 1″ | Rake Angle Axial (GAMP) | 6 Degrees |
| Functional Length (LF) | 6″ | Rake Angle Radial (GAMF) | 6 Degrees |
| Head Length (LH) | 0.79″ | Body Material | Steel |
| Functional Width (WF) | 1.3″ | Cutting Position | External |
| Inscribed Circle Diameter (IC) | 3/8″ | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | TNMX 34., TNMG 33. | Style | SCLCL08-3A |
Product Features
| Family Description | 91° entering angle lever lock external turning tools with Channels for High-Pressure Coolant carrying negative triangular inserts | Country of Origin | Israel |
| Remarks | Supplied with TTX 3 seat for TNMX 34. inserts and TTN 3 seat for TNMG 33. inserts |
Shipping Info
Package Weight
1.803
