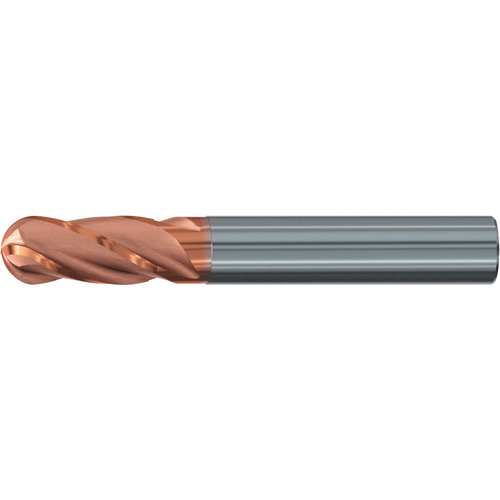

Ballnose End Mill; 8 mm Dia. × 8 mm Shank Dia. × 63 mm OAL ; 4 FL ; Carbide ; TiAlN ; Series 2502A
BN End Mill; 8 mm Dia. × 8 mm Shank Dia. × 63 mm OAL ; 4 FL ; Carbide ; AlTiN ; Series 2502A
| Cutting Diameter (DC) | 8 mm | Applicable Material | | Universal Materials | |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Application | | Finishing | |
| Overall Length (OAL) | 63 mm | Tool Type | Top-Cut |
| Cutting Edge Material | Carbide | Length Group | Standard |
| Coating | AlTiN | End Shape | Ball Nose |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 35 Degrees | Measurement Type | Metric |
| Shank Type | Round | Series/List # | 2502A |
| Usable Length (LU) | 16 mm | Cutting Direction (HAND) | Right Hand |
Product Features
| Remarks | • TOP-Cut carbide ball nose end mill in long design for universal roughing and finishing applications in many materials • Suitable for high speed machining and finishing • TIALN coated for additional heat and wear resistance | Country of Origin | Germany |
Shipping Info
Package Weight
0.086
