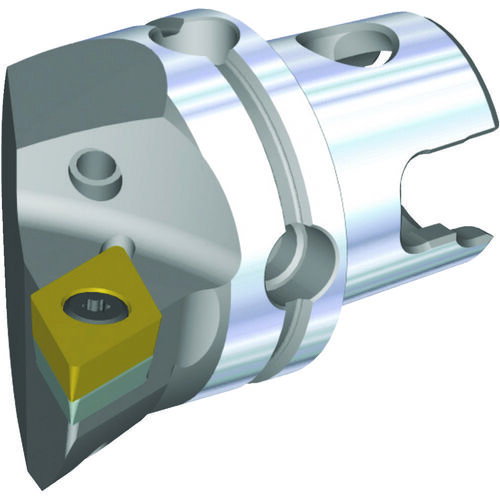

KM40TSSDQCR11 KM40TS SCREW ON CUTTING UNIT
Turning Toolholder; 64.95 mm OAL x #40 Shank Dia. × 40 mm LH ; Right Hand ; Steel
Additional Tariff Surcharge of 8.5 %
| Protruding Length (LPR) | 40 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 64.95 mm | Shank Type | KM |
| Head Length (LH) | 40 mm | Body Diameter (BD) | 50 mm |
| Connection Diameter Machine Side (DCONMS) | #40 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 50 mm | End Chamfer Angle (ECA) | 107.5 Degrees |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
.6041
