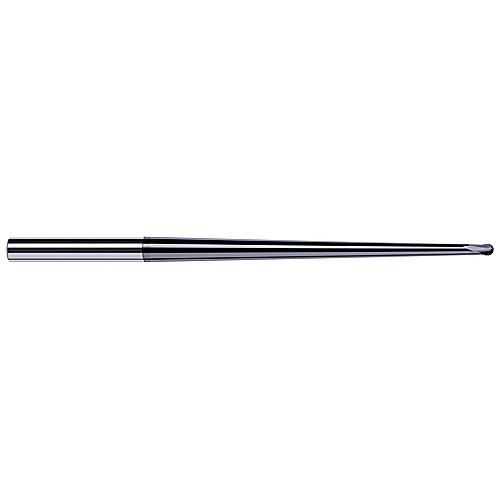

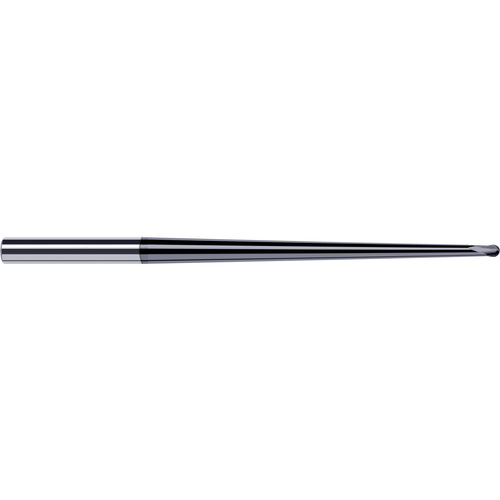

Ballnose End Mill; 1/8″ Dia. × 0.1″ LOC × 3/16″ Shank Dia. × 2-1/2″ OAL ; 2 FL ; Carbide ; TiAlN Nano
BN End Mill; 1/8″ Dia. × 0.1″ LOC × 3/16″ Shank Dia. × 2-1/2″ OAL ; 2 FL ; Carbide ; TiAlN
| Cutting Diameter (DC) | 1/8″ | Applicable Material | | Steel | |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Corner Radius (RE) | 1/16″ |
| Depth of Cut Maximum (APMX) | 0.1″ | Body Half Taper Angle (BHTA) | 0 Degrees |
| Overall Length (OAL) | 2-1/2″ | Length Group | 0.8D |
| Cutting Edge Material | Carbide | End Shape | Ball Nose |
| Coating | TiAlN | Decimal Equivalent | 0.125″ |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 35 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Single / Double End | Single End |
| Usable Length (LU) | 1.058″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.036
