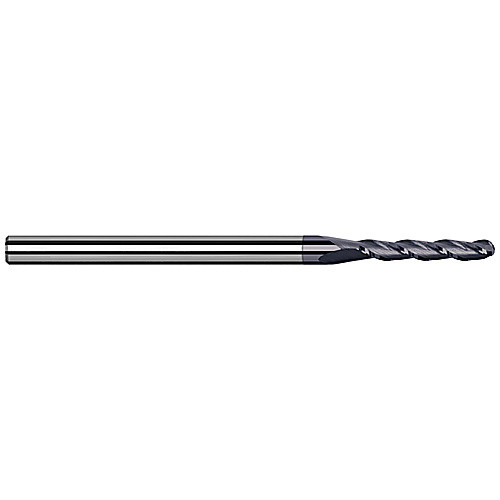

Ballnose End Mill; 1/8″ Dia. × 5/8″ LOC × 1/8″ Shank Dia. × 2-1/2″ OAL ; 4 FL ; Carbide ; TiAlN
BN End Mill; 1/8″ Dia. × 5/8″ LOC × 1/8″ Shank Dia. × 2-1/2″ OAL ; 4 FL ; Carbide ; TiAlN
| Cutting Diameter (DC) | 1/8″ | Usable Length (LU) | 5/8″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Applicable Material | | Steel | |
| Depth of Cut Maximum (APMX) | 5/8″ | Corner Radius (RE) | 1/16″ |
| Overall Length (OAL) | 2-1/2″ | Length Group | 5D |
| Cutting Edge Material | Carbide | End Shape | Ball Nose |
| Coating | TiAlN | Decimal Equivalent | 0.125″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 37 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.016
