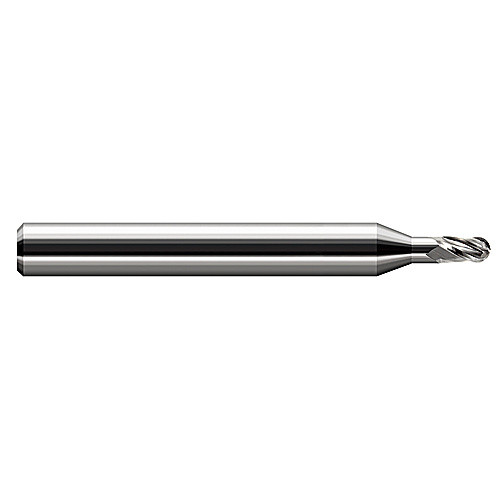

Ballnose End Mill; 5/32″ Dia. × 15/64″ LOC × 3/16″ Shank Dia. × 3″ OAL ; 3 FL ; Carbide ; Uncoated
BN End Mill; 5/32″ Dia. × 15/64″ LOC × 3/16″ Shank Dia. × 3″ OAL ; 3 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 5/32″ | Usable Length (LU) | 0.47″ |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Corner Radius (RE) | 5/64″ |
| Depth of Cut Maximum (APMX) | 15/64″ | Length Group | 3D |
| Overall Length (OAL) | 3″ | End Shape | Ball Nose |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.1563″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees | Single / Double End | Single End |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.043
