JSCL2CL1212K06

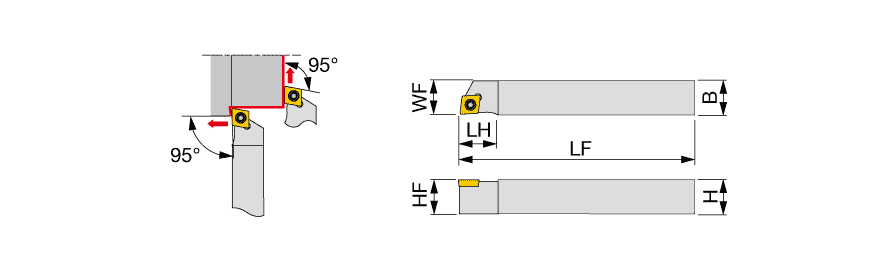

Turning Toolholder; 125 mm OAL × 12 mm Shank Height × 12 mm Shank Width × 125 mm LH ; Left Hand ; Steel
| Shank Height (H) | 12 mm | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 12 mm | Body Material | Steel |
| Overall Length (OAL) | 125 mm | End Chamfer Angle (ECA) | 95 Degrees |
| Functional Length (LF) | 4″ | Tool Type | Square Shank Turning Tools |
| Head Length (LH) | 125 mm | Measurement Type | Metric |
| Functional Width (WF) | 6.5 mm | Style | SCLCL08-3A |
| Inscribed Circle Diameter (IC) | 6.5 mm | Insert Style | 125mm |
Product Features
| Family Description | No-offset Screw-on toolholder with 95deg approach angle, for positive 80deg rhombic inserts | Country of Origin | Japan |
| Remarks | Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.348
