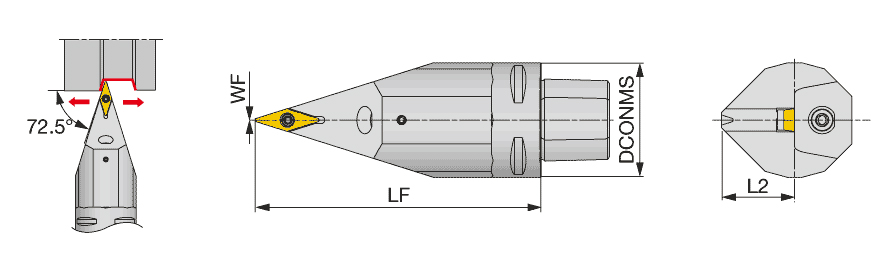

C6SVVCN00100-16
Turning Toolholder; 100 mm OAL × 1/2″ Shank Height × 1/2″ Shank Width × 63 Shank Dia. ; Neutral ; Steel
| Shank Height (H) | 1/2″ | Cutting Direction (HAND) | Neutral |
| Shank Width (B) | 1/2″ | Body Material | Steel |
| Overall Length (OAL) | 100 mm | End Chamfer Angle (ECA) | 95 Degrees |
| Functional Length (LF) | 4″ | Tool Type | Tapered Shank Turning Tools |
| Functional Width (WF) | 16.6 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 63 | Style | SCLCL08-3A |
| Inscribed Circle Diameter (IC) | 16.6 mm |
Product Features
| Family Description | "TungCap" Screw-on clamp toolholder with 72.5deg approach angle, for positive 35deg rhombic inserts | Country of Origin | Japan |
| Remarks | The last character of designation is "N": Capable for 7Mpa coolant pressure. |
Shipping Info
Package Weight
3.777
