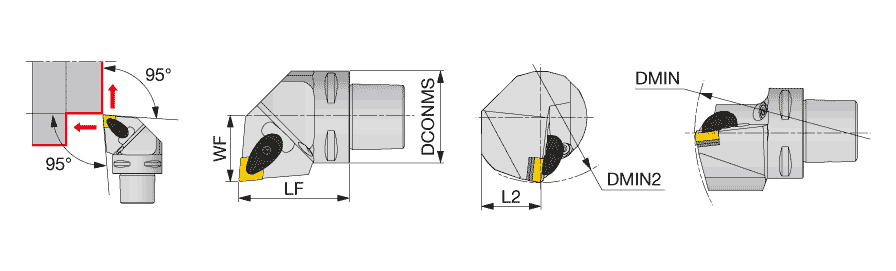

C6ACLNL45135-12N
Turning Toolholder; 135 mm OAL × 1/2″ Shank Height × 1/2″ Shank Width × 63 Shank Dia. ; Left Hand ; Steel
| Shank Height (H) | 1/2″ | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 1/2″ | Body Material | Steel |
| Overall Length (OAL) | 135 mm | End Chamfer Angle (ECA) | 95 Degrees |
| Functional Length (LF) | 4″ | Tool Type | Tapered Shank Turning Tools |
| Functional Width (WF) | 12.9 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 63 | Style | SCLCL08-3A |
| Inscribed Circle Diameter (IC) | 12.9 mm |
Product Features
| Family Description | "TungCap" Double-clamp toolholder with 95deg approach angle, for negative 80deg rhombic inserts | Country of Origin | Japan |
| Remarks | The last character of designation is "N":Capable for 7MPa coolant pressure. |
Shipping Info
Package Weight
0
