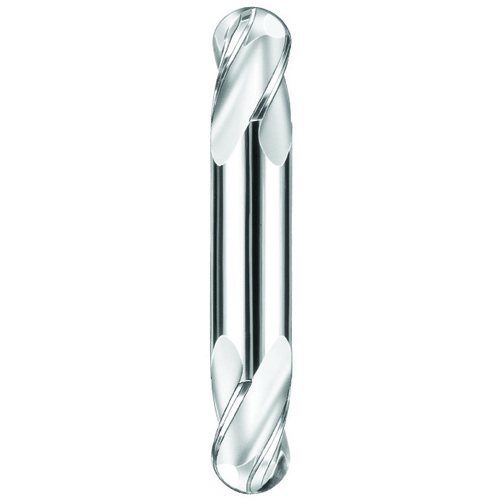

2.5 mm Dia. × 3 mm Shank × 5 mm DOC × 38 mm OAL, Carbide Uncoated, Spiral , 4 Flute, 30° Helix, Ballnose End Mill
BN End Mill; 2.5 mm Dia. × 5 mm LOC × 3 mm Shank Dia. × 38 mm OAL ; 4 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 2.5 mm | Flute Count (NOF) | 4 |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Flute Helix Angle (FHA) | 30 Degrees |
| Depth of Cut Maximum (APMX) | 5 mm | Usable Length (LU) | 33 mm |
| Overall Length (OAL) | 38 mm | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Style | Ball Nose |
| Coating | Uncoated | Decimal Equivalent | 0.0984″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.012
