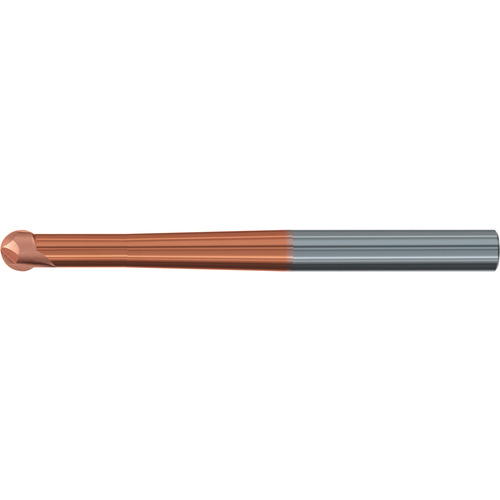

Ballnose End Mill; 3 mm Dia. × 6 mm Shank Dia. × 80 mm OAL ; 2 FL ; Carbide ; TiAlN ; Series 1935A
| Cutting Diameter (DC) | 3 mm | Applicable Material | | Universal Materials | |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Application | | Finishing | |
| Overall Length (OAL) | 80 mm | Tool Type | Top-Cut |
| Cutting Edge Material | Carbide | Length Group | Standard |
| Coating | AlTiN | End Shape | Ball Nose |
| Flute Count (NOF) | 2 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 15 Degrees | Measurement Type | Metric |
| Shank Type | Round | Series/List # | 1935A |
| Usable Length (LU) | 2 mm | Cutting Direction (HAND) | Right Hand |
Product Features
| Remarks | • TOP-Cut "Lollipop" carbide ball nose end mill in extra long design for roughing and finishing operations in a wide range of materials • Patented chisel edge design with 220-240° ball nose. • TIALN coated for additional heat and wear resistance • Suitable for roughing and finishing and also undercut milling. | Country of Origin | Germany |
Shipping Info
Package Weight
0.99
