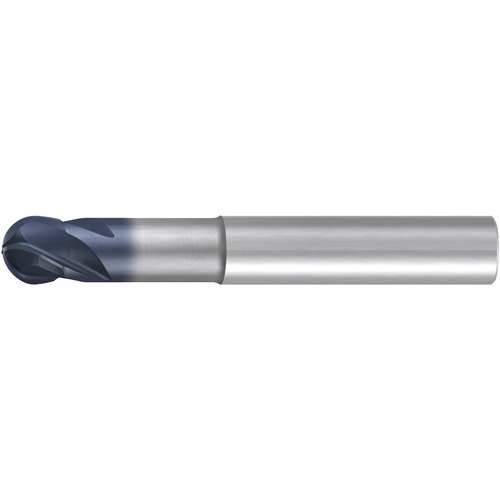

Ballnose End Mill; 5 mm Dia. × 6 mm Shank Dia. × 57 mm OAL ; 4 FL ; Carbide ; TiAlN ; Series 2834A
BN End Mill; 5 mm Dia. × 6 mm Shank Dia. × 57 mm OAL ; 4 FL ; Carbide ; AlTiN ; Series 2834A
| Cutting Diameter (DC) | 5 mm | Applicable Material | | Hard Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Application | | Finishing | |
| Overall Length (OAL) | 57 mm | Tool Type | Hard-Cut |
| Cutting Edge Material | Carbide | Length Group | Stub |
| Coating | AlTiN | End Shape | Ball Nose |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Metric |
| Shank Type | Round | Series/List # | 2834A |
| Usable Length (LU) | 5 mm | Cutting Direction (HAND) | Right Hand |
Product Features
| Remarks | • Hard-Cut carbide ball nose end mill for finishing applications in many materials, including hard materials • Design with four flutes enables finishing with very good surface quality • Very precise radius tolerance of ± 5 µm for precise machining results and highest repetitive accuracy. • TIALN coated for additional heat and wear resistance | Country of Origin | Germany |
Shipping Info
Package Weight
0.99
