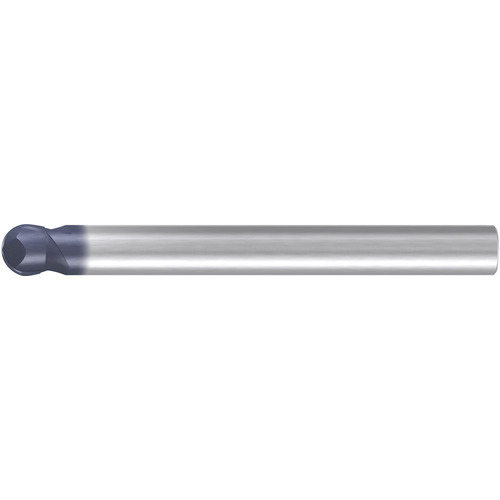

Ballnose End Mill; 6 mm Dia. × 6 mm Shank Dia. × 80 mm OAL ; 2 FL ; Carbide ; TiAlN ; Series 2819A
BN End Mill; 6 mm Dia. × 6 mm Shank Dia. × 80 mm OAL ; 2 FL ; Carbide ; AlTiN ; Series 2819A
| Cutting Diameter (DC) | 6 mm | Applicable Material | | Hard Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Application | | Finishing | |
| Overall Length (OAL) | 80 mm | Tool Type | Hard-Cut |
| Cutting Edge Material | Carbide | Length Group | Extra Long |
| Coating | AlTiN | End Shape | Ball Nose |
| Flute Count (NOF) | 2 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Metric |
| Shank Type | Round | Series/List # | 2819A |
| Usable Length (LU) | 3.5 mm | Cutting Direction (HAND) | Right Hand |
Product Features
| Remarks | • Hard-Cut carbide ball nose end mill in long design for roughing and finishing applications in many materials, including hardened materials • Very precise radius tolerance of ± 5 µm for precise machining results and highest repetitive accuracy • Extra short, stable flute length • Hard milling for materials up to 66 HRC | Country of Origin | Germany |
Shipping Info
Package Weight
0.99
