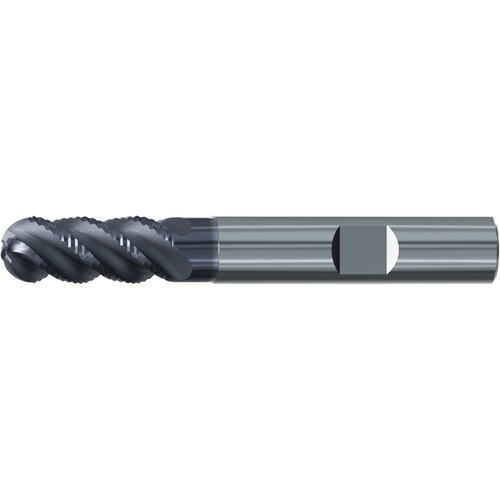

Ballnose End Mill; 14 mm Dia. × 14 mm Shank Dia. × 83 mm OAL ; 4 FL ; Carbide ; TiAlN ; Series 2667A
BN End Mill; 14 mm Dia. × 14 mm Shank Dia. × 83 mm OAL ; 4 FL ; Carbide ; AlTiN ; Series 2667A
| Cutting Diameter (DC) | 14 mm | Applicable Material | | Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 14 mm | Application | | Roughing | |
| Overall Length (OAL) | 83 mm | Tool Type | Multi-Cut |
| Cutting Edge Material | Carbide | Length Group | Standard |
| Coating | AlTiN | End Shape | Ball Nose |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 45 Degrees | Measurement Type | Metric |
| Shank Type | Weldon | Series/List # | 2667A |
| Usable Length (LU) | 26 mm | Cutting Direction (HAND) | Right Hand |
Product Features
| Remarks | • Multi-Cut carbide ball nose end mill for high-performance roughing in most materials • Very low cutting forces and vibrations due to variable flute spacing and NR cutting profile • Also suitable for 3D roughing due to chip breaker in the radius section • Excellent for roughing under unstable conditions | Country of Origin | Germany |
Shipping Info
Package Weight
0.99
