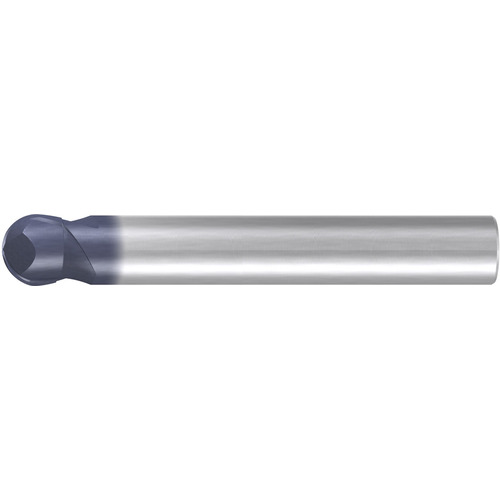

Ballnose End Mill; 1/2″ Dia. × 1/2″ Shank Dia. × 3-1/4″ OAL ; 2 FL ; Carbide ; TiAlN ; Series 1973A
BN End Mill; 1/2″ Dia. × 1/2″ Shank Dia. × 3-1/4″ OAL ; 2 FL ; Carbide ; AlTiN ; Series 1973A
| Cutting Diameter (DC) | 1/2″ | Application | | Finishing | |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Tool Type | Hard-Cut |
| Overall Length (OAL) | 3-1/4″ | Length Group | Stub |
| Cutting Edge Material | Carbide | End Shape | Ball Nose |
| Coating | AlTiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 | Decimal Equivalent | 0.5″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 1973A |
| Usable Length (LU) | 17/64″ | Cutting Direction (HAND) | Right Hand |
| Applicable Material | | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Remarks | • Hard-Cut carbide ball nose end mill for roughing and finishing applications in many materials, including hardened materials • Very precise radius tolerance of ± 5 µm for precise machining results and highest repetitive accuracy • Suitable for high speed finishing • TiALN coated for additional heat and wear resistance | Country of Origin | Germany |
Shipping Info
Package Weight
0.99
