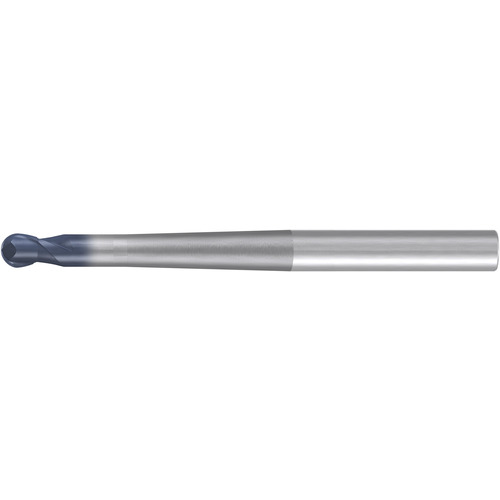

Ballnose End Mill; 1/4″ Dia. × 1/4″ Shank Dia. × 3-1/2″ OAL ; 2 FL ; Carbide ; TiAlN ; Series 1963A
BN End Mill; 1/4″ Dia. × 1/4″ Shank Dia. × 3-1/2″ OAL ; 2 FL ; Carbide ; AlTiN ; Series 1963A
| Cutting Diameter (DC) | 1/4″ | Application | | Finishing | |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Tool Type | Hard-Cut |
| Overall Length (OAL) | 3-1/2″ | Length Group | Extra Long |
| Cutting Edge Material | Carbide | End Shape | Ball Nose |
| Coating | AlTiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 | Decimal Equivalent | 0.25″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 1963A |
| Usable Length (LU) | 5/16″ | Cutting Direction (HAND) | Right Hand |
| Applicable Material | | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Remarks | • Hard-Cut carbide ball nose end mill in extra long design for finishing applications in many materials, including hardened materials • Very precise radius tolerance of ± 5 µm for precise machining results and highest repetitive accuracy • Suitable for high speed finishing • TiALN coated for additional heat and wear resistance | Country of Origin | Germany |
Shipping Info
Package Weight
0.99
