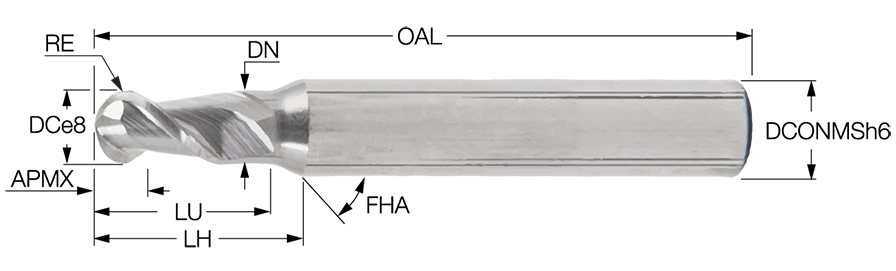

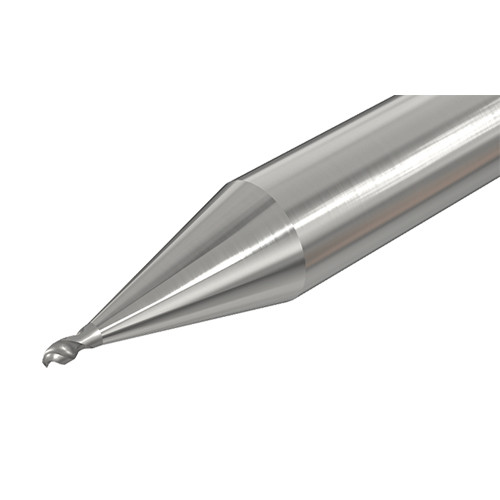

EBA-B2 020-020/04C6-57 IC08
BN End Mill; 2 mm Dia. × 2 mm LOC × 6 mm Shank Dia. × 57 mm OAL ; 2 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 2 mm | Application | | Profiling | |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Corner Radius (RE) | 1 mm |
| Depth of Cut Maximum (APMX) | 2 mm | Neck Diameter (DN) | 1.8 mm |
| Overall Length (OAL) | 57 mm | Body Half Taper Angle (BHTA) | 15 Degrees |
| Cutting Edge Material | Carbide | Grade | IC08 |
| Coating | Uncoated | End Shape | Square |
| Flute Count (NOF) | 2 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 45 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| Usable Length (LU) | 4 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Aluminum / Non-Ferrous Materials | |
Product Features
| Family Description | 2 flute high precision solid carbide ball nose endmills for machining aluminum. | Country of Origin | Israel |
Shipping Info
Package Weight
0.054
