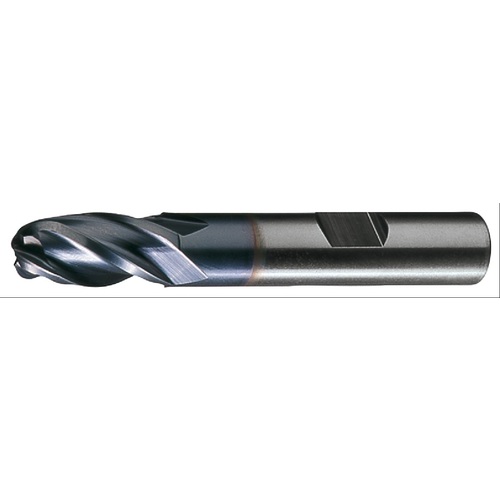

3/4″ Dia. × 3/4″ Shank × 3″ DOC × 5-1/4″ OAL, HSS TiCN, Spiral , 4 Flute, CW Helix, Weldon, Ballnose End Mill
BN End Mill; 3/4″ Dia. × 3″ LOC × 3/4″ Shank Dia. × 5-1/4″ OAL ; 4 FL ; HSS ; TiCN ; Series HG-4B-TC
| Cutting Diameter (DC) | 3/4″ | Application | Finishing |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Tool Type | End Mill |
| Depth of Cut Maximum (APMX) | 3″ | End Shape | Ball Nose |
| Overall Length (OAL) | 5-1/4″ | Flute Type | Spiral |
| Cutting Edge Material | HSS | Decimal Equivalent | 0.75″ |
| Coating | TiCN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | HG-4B-TC |
| Flute Helix Angle (FHA) | CW | Cutting Direction (HAND) | Right Hand |
| Shank Type | Weldon | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.512
