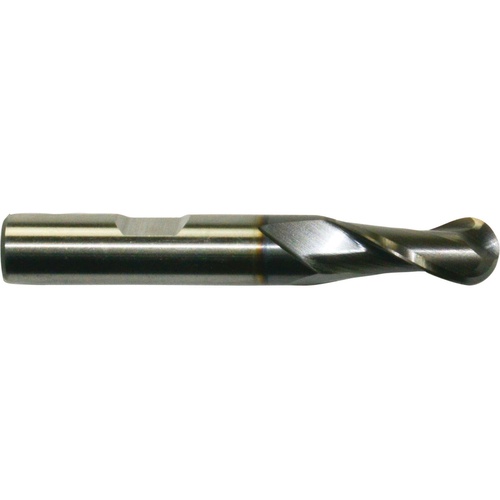

1″ Dia. × 1″ Shank × 2-1/4″ DOC × 4-3/4″ OAL, HSSCoPM TiCN, Spiral , 2 Flute, CW Helix, Weldon, Ballnose End Mill
BN End Mill; 1″ Dia. × 2-1/4″ LOC × 1″ Shank Dia. × 4-3/4″ OAL ; 2 FL ; HSSCo8 ; TiCN ; Series HGC-2B-TC
| Cutting Diameter (DC) | 1″ | Application | Finishing |
| Connection Diameter Machine Side (DCONMS) | 1″ | Tool Type | End Mill |
| Depth of Cut Maximum (APMX) | 2-1/4″ | End Shape | Ball Nose |
| Overall Length (OAL) | 4-3/4″ | Flute Type | Spiral |
| Cutting Edge Material | HSSCo8 | Decimal Equivalent | 1″ |
| Coating | TiCN | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Series/List # | HGC-2B-TC |
| Flute Helix Angle (FHA) | CW | Cutting Direction (HAND) | Right Hand |
| Shank Type | Weldon | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.739
