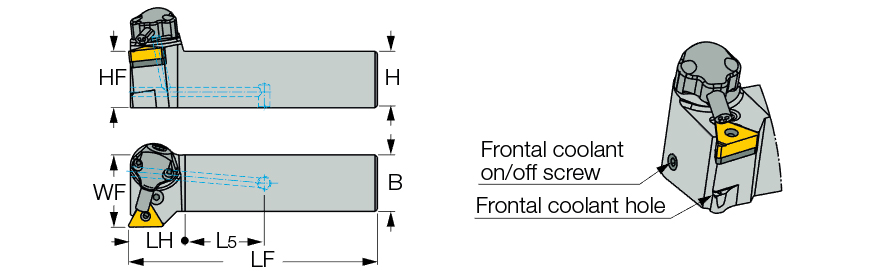

| Shank Height (H) | 20 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Width (B) | 20 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Length (LF) | 95 mm | Body Material | Steel |
| Head Length (LH) | 25 mm | Cutting Position | External |
| Functional Width (WF) | 25 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | TNMX 1606, TNMG 1604 | Insert Style | 95mm |
| Application | | Ext. 60° Triangle 91° Approach | |
Product Features

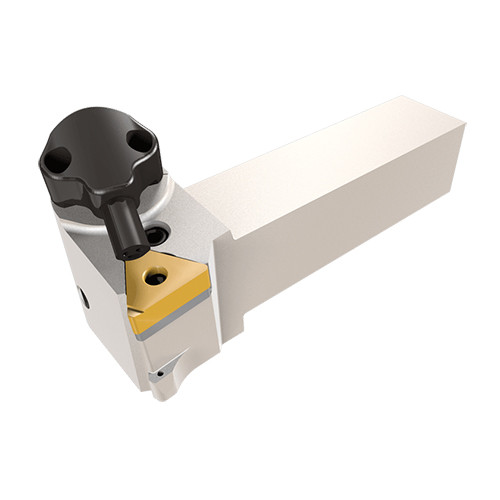

| Family Description | Lever lock tools with bottom inlets for high-pressure coolant channels, carrying the HELITURN LD TNMX and TNMG Triangular inserts. The tools were designed to be clamped in VDI and CAMFIX shanks with bottom coolant-fed toolholders. | Country of Origin | Israel |
| Remarks | Supplied with TTX 3 seat for TNMX 1606.. inserts and TTN 3 seat for TNMG 1604.. inserts. |
Shipping Info
Package Weight
0.959
