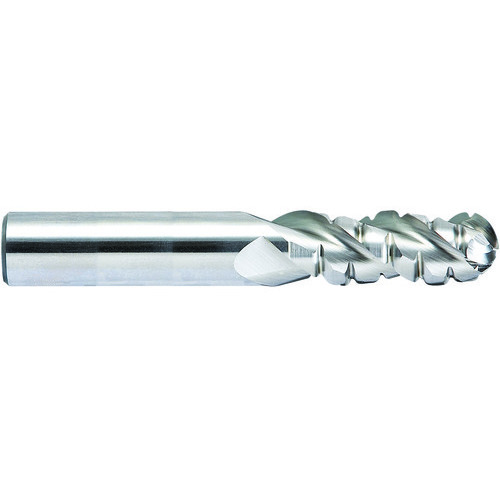

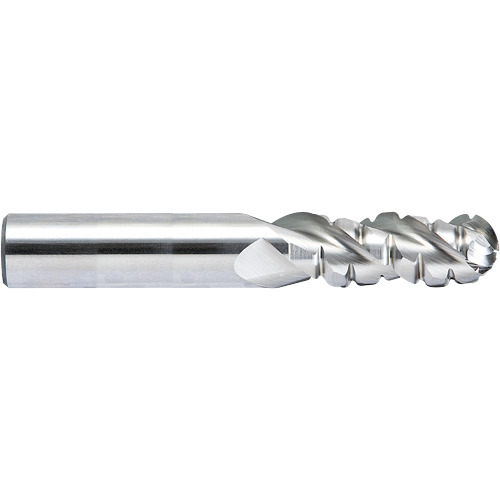

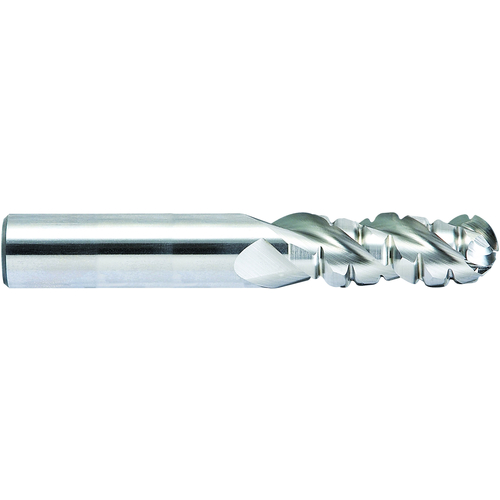

Ball Nose End Mill; 3/4″ Dia. × 1-5/8″ LOC × 3/4″ Shank Dia. × 4″ OAL ; 3 FL ; Carbide ; Bright ; Series E5E45
BN End Mill; 3/4″ Dia. × 1-5/8″ LOC × 3/4″ Shank Dia. × 4″ OAL ; 3 FL ; Carbide ; Uncoated ; Series E5E45
| Cutting Diameter (DC) | 3/4″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Tool Type | Ball Nose Roughing |
| Depth of Cut Maximum (APMX) | 1-5/8″ | End Shape | Ball Nose |
| Overall Length (OAL) | 4″ | Flute Type | Roughing |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.75″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Series/List # | E5E45 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.5
Package Width
1.25
Package Height
1.25
Package Weight
0.732
