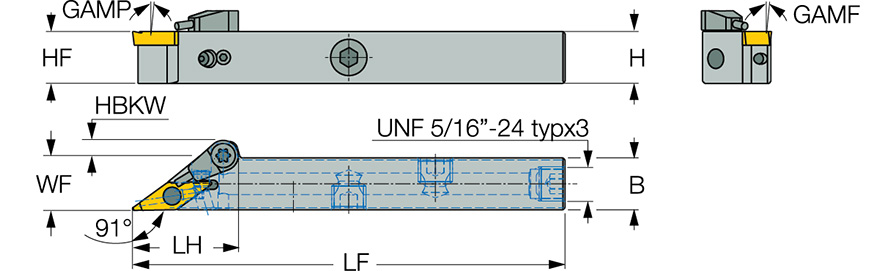

| Shank Height (H) | 5/8″ | Application | | Ext. 35° Diamond 91° Approach | |
| Shank Width (B) | 5/8″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Length (LF) | 4-3/4″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Head Length (LH) | 1″ | Body Material | Steel |
| Functional Width (WF) | 0.63″ | Cutting Position | External |
| Inscribed Circle Diameter (IC) | 1/4″ | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | VC..22 | Style | SCLCL08-3A |
Product Features

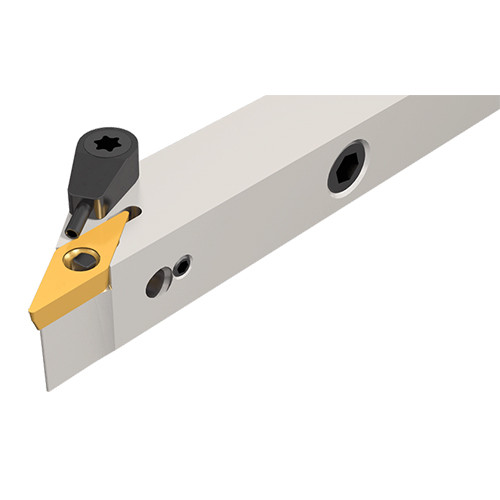

| Family Description | Lever lock tools with channels for high-pressure coolant carrying 35° positive rhombic inserts. The tools were designed for Swiss automatic machines. | Country of Origin | SWITZERLAND |
| Remarks | For more details click on More Info |
Shipping Info
Package Weight
0.41
