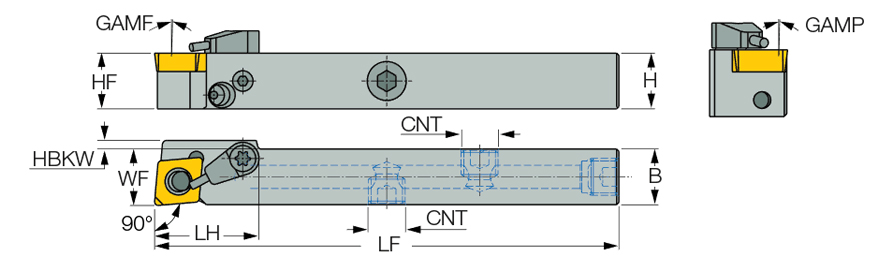

| Shank Height (H) | 1/2″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Width (B) | 1/2″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Length (LF) | 4″ | Body Material | Steel |
| Head Length (LH) | 0.9″ | Cutting Position | External |
| Functional Width (WF) | 0.51″ | End Chamfer Angle (ECA) | 90 Degrees |
| Inscribed Circle Diameter (IC) | 3/8″ | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | CC..3.. | Style | SCLCL08-3A |
| Application | | Ext. 80° Diamond 91° Approach | |
Product Features

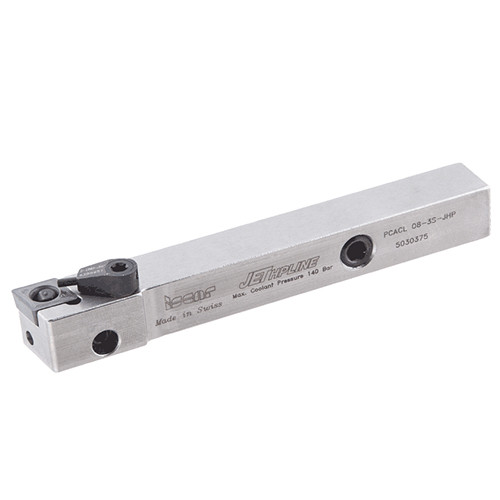

| Family Description | Lever lock tools with High Pressure coolant channels for 80° positive rhombic inserts. The tools were designed for Swiss automatic machines. | Country of Origin | Switzerland |
Shipping Info
Package Weight
0.022
