C4 MULNR 27050-12MW
Turning Toolholder; 2.913″ OAL × 1.575″ Shank Dia. ; Right Hand ; Steel

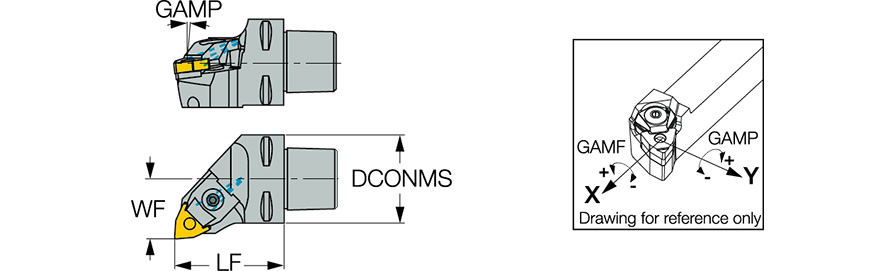

| Overall Length (OAL) | 2.913″ | Application | | Ext. 80° Diamond 95° Approach | Ext. 80° Trigon 95° Approach | Ext. 90° Square 75° Approach | |
| Functional Length (LF) | 1.968″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Width (WF) | 1.063″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1.575″ | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Position | External |
| Cutting Direction (HAND) | Right Hand | Tool Type | Tapered Shank Turning Tools |
| Master Insert Identification (MIID) | W/C/SN..4.. | Measurement Type | Inch |
| Coolant Supply Property (CSP) | Coolant Thru | Style | SCLCL08-3A |
Product Features
| Family Description | MULTI-WEDGE tools with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks, carrying negative 80° rhombic or trigon or square inserts. | Country of Origin | Israel |

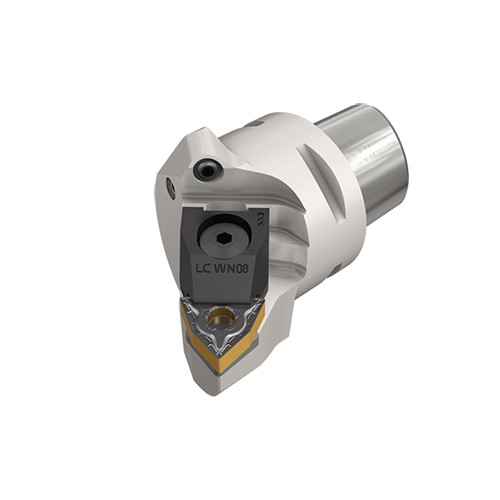

| Remarks | Only LC WN08 is supplied with the toolholder. The other two wedges should be ordered separately. RH wedge for RH tool. LH wedge for LH tool. For other wedges see more info. |
Shipping Info
Package Weight
0.992
