PSDON 24-8-IQ

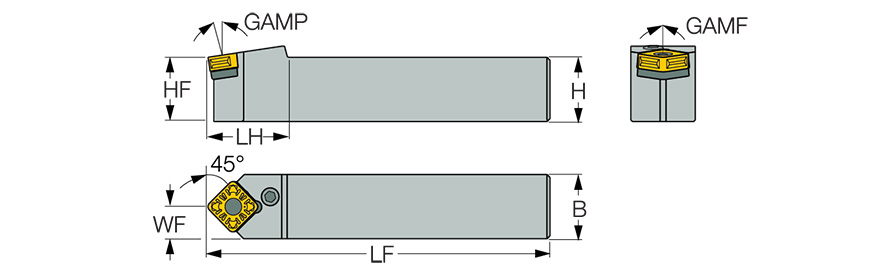

| Shank Height (H) | 1-1/2″ | Application | | Ext. 90° Square 45° Approach | |
| Shank Width (B) | 1-1/2″ | Rake Angle Axial (GAMP) | -8.5 Degrees |
| Functional Length (LF) | 7″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Head Length (LH) | 2.05″ | Body Material | Steel |
| Functional Width (WF) | 0.79″ | Cutting Position | External |
| Inscribed Circle Diameter (IC) | 1″ | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Neutral | Measurement Type | Inch |
| Master Insert Identification (MIID) | SOMG 86 | Style | SCLCL08-3A |
Product Features
| Family Description | Lever-lock and dovetail pocket rigid clamping tools carrying 10° unique double-sided negative flank square inserts, for rough turning. | Country of Origin | Israel |
Shipping Info
Package Weight
4.482
