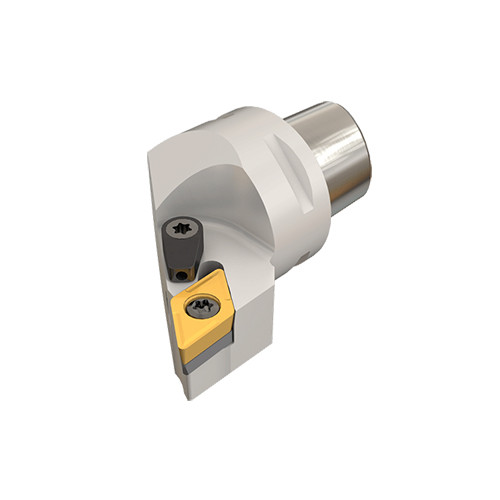

C3 SDJCR-22040-11-JHP
Turning Toolholder; 2.323″ OAL × 1.26″ Shank Dia. ; Right Hand ; Steel

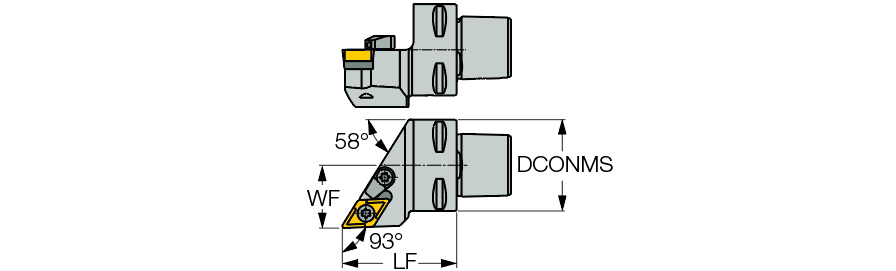

| Overall Length (OAL) | 2.323″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Length (LF) | 1.575″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Width (WF) | 0.866″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1.26″ | Cutting Position | External |
| Inscribed Circle Diameter (IC) | 3/8″ | End Chamfer Angle (ECA) | 58 Degrees |
| Cutting Direction (HAND) | Right Hand | Tool Type | Tapered Shank Turning Tools |
| Master Insert Identification (MIID) | DC.. 3.. | Measurement Type | Inch |
| Coolant Supply Property (CSP) | Coolant Thru | Style | SCLCL08-3A |
| Application | | Ext. 55° Diamond 93° Approach | |
Product Features
| Family Description | Screw clamp tools with CAMFIX (ISO 26623-1) shanks and channels for high-pressure coolant, carrying positive 55° rhombic inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
0.582
