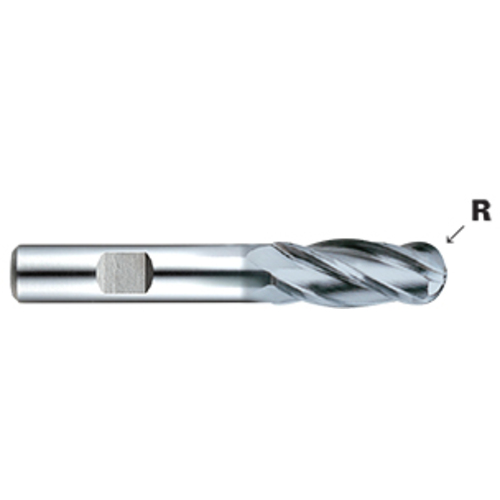

Ball Nose End Mill; 5/16″ Dia. × 3/4″ LOC × 3/8″ Shank Dia. × 2-1/2″ OAL ; 4 FL ; PM60 ; ALCrN ; Series GYG67
| Cutting Diameter (DC) | 5/16″ | Usable Length (LU) | 3/4″ |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Depth of Cut Maximum (APMX) | 3/4″ | Corner Radius (RE) | 5/32″ |
| Overall Length (OAL) | 2-1/2″ | End Shape | Ball Nose |
| Cutting Edge Material | HSSCo-PM | Decimal Equivalent | 0.3125″ |
| Coating | AlCrN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | GYG67 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Weldon | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.5
Package Width
1.25
Package Height
1.25
Package Weight
0.439
