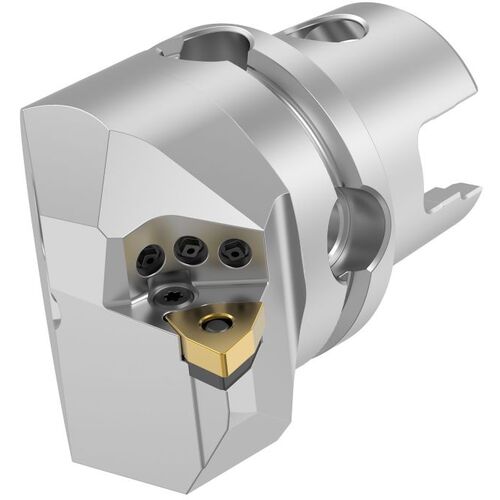

KM63TSPWLNR08HPC KM63TS CUTTING UNIT HPC
Turning Toolholder; 99.95 mm OAL x #63 Shank Dia. × 60 mm LH ; Right Hand ; Steel
Additional Tariff Surcharge of 8.5 %
| Protruding Length (LPR) | 60 mm | Shank Type | | KM | Taper | |
| Overall Length (OAL) | 99.95 mm | Rake Angle Axial (GAMP) | -7 Degrees |
| Head Length (LH) | 60 mm | Rake Angle Radial (GAMF) | 7 Degrees |
| Connection Diameter Machine Side (DCONMS) | #63 | Body Diameter (BD) | 80 mm |
| Minimum Bore Diameter (DMIN) | 80 mm | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | End Chamfer Angle (ECA) | 95 Degrees |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
2.9555
