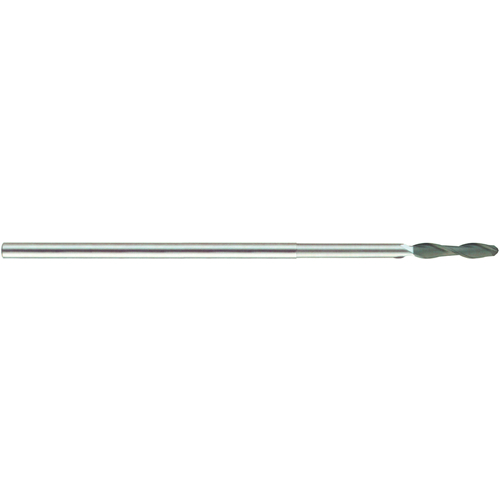

Ball Nose End Mill; 5/64″ Dia. × 3/8″ LOC × 1/8″ Shank Dia. × 4″ OAL ; 2 FL ; Carbide ; Diamond ; Series El972
BN End Mill; 5/64″ Dia. × 3/8″ LOC × 1/8″ Shank Dia. × 4″ OAL ; 2 FL ; Carbide ; CVDDIA ; Series El972
| Cutting Diameter (DC) | 5/64″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Corner Radius (RE) | 0.0392″ |
| Depth of Cut Maximum (APMX) | 3/8″ | Neck Diameter (DN) | 0.076″ |
| Overall Length (OAL) | 4″ | End Shape | Ball Nose |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.0781″ |
| Coating | CVDDIA | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Series/List # | El972 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
| Usable Length (LU) | 3/4″ |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
5
Package Width
0.625
Package Height
0.625
Package Weight
0.031
