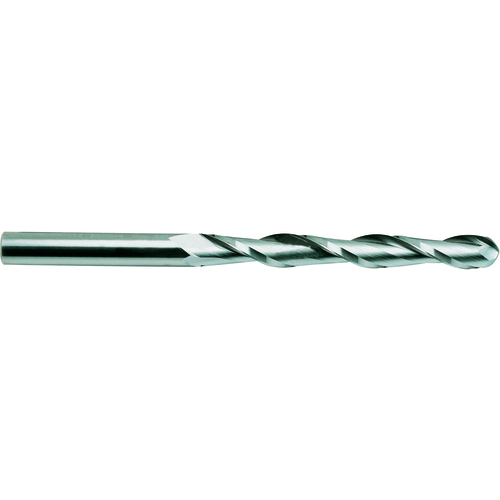

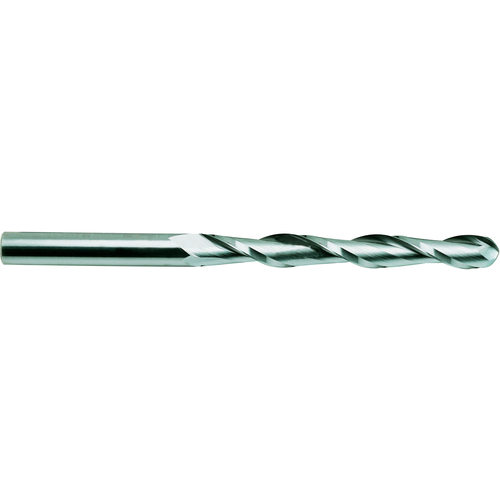

Ball Nose End Mill; 5/16″ Dia. × 1-5/8″ LOC × 5/16″ Shank Dia. × 4″ OAL ; 2 FL ; Carbide ; Bright ; Series E5018
BN End Mill; 5/16″ Dia. × 1-5/8″ LOC × 5/16″ Shank Dia. × 4″ OAL ; 2 FL ; Carbide ; Uncoated ; Series E5018
| Cutting Diameter (DC) | 5/16″ | Applicable Material | | Steel | |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Corner Radius (RE) | 5/32″ |
| Depth of Cut Maximum (APMX) | 1-5/8″ | Length Group | Long |
| Overall Length (OAL) | 4″ | End Shape | Ball Nose |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.3125″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Series/List # | E5018 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
| Usable Length (LU) | 1-5/8″ |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.5
Package Width
0.75
Package Height
0.75
Package Weight
0.149
