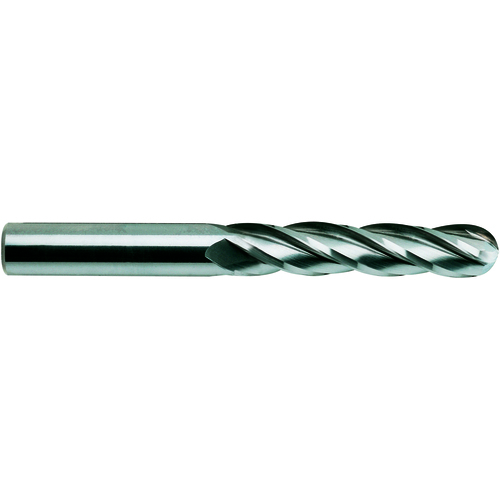

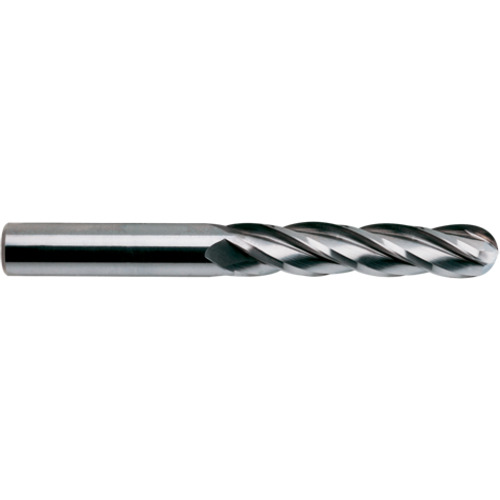

Ball Nose End Mill; 5/8″ Dia. × 3″ LOC × 5/8″ Shank Dia. × 6″ OAL ; 4 FL ; Carbide ; Bright ; Series E5062
BN End Mill; 5/8″ Dia. × 3″ LOC × 5/8″ Shank Dia. × 6″ OAL ; 4 FL ; Carbide ; Uncoated ; Series E5062
| Cutting Diameter (DC) | 5/8″ | Applicable Material | | Steel | |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Corner Radius (RE) | 7/32″ |
| Depth of Cut Maximum (APMX) | 3″ | Length Group | Extra Long |
| Overall Length (OAL) | 6″ | End Shape | Ball Nose |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.625″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | E5062 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
| Usable Length (LU) | 3″ |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
6.375
Package Width
1
Package Height
1
Package Weight
0.815
