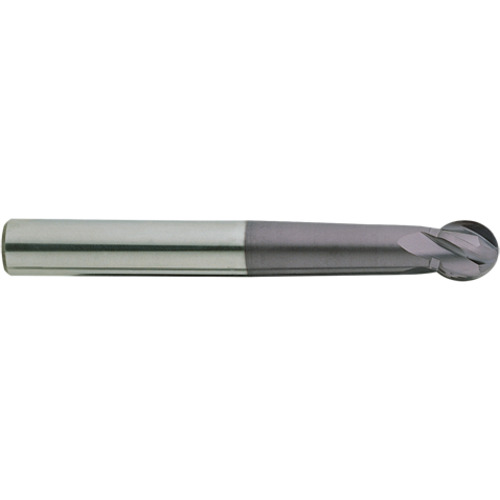

Ball Nose End Mill; 5/16″ Dia. × 1/4″ LOC × 5/16″ Shank Dia. × 6-1/4″ OAL ; 4 FL ; Carbide ; ALTiN ; Series EM097
BN End Mill; 5/16″ Dia. × 1/4″ LOC × 5/16″ Shank Dia. × 6-1/4″ OAL ; 4 FL ; Carbide ; AlTiN ; Series EM097
| Cutting Diameter (DC) | 5/16″ | Applicable Material | | Steel | |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Corner Radius (RE) | 5/32″ |
| Depth of Cut Maximum (APMX) | 1/4″ | Neck Diameter (DN) | 1/4″ |
| Overall Length (OAL) | 6-1/4″ | Length Group | Long |
| Cutting Edge Material | Carbide | End Shape | Ball Nose |
| Coating | AlTiN | Decimal Equivalent | 0.3125″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | EM097 |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 1-3/8″ | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.5
Package Width
1/0/1900 18:00
Package Height
0.75
Package Weight
0.163
