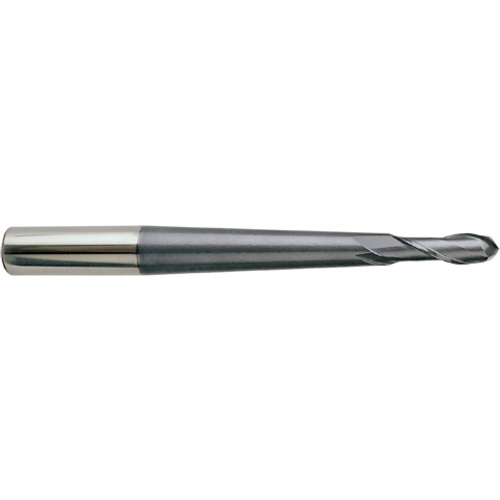

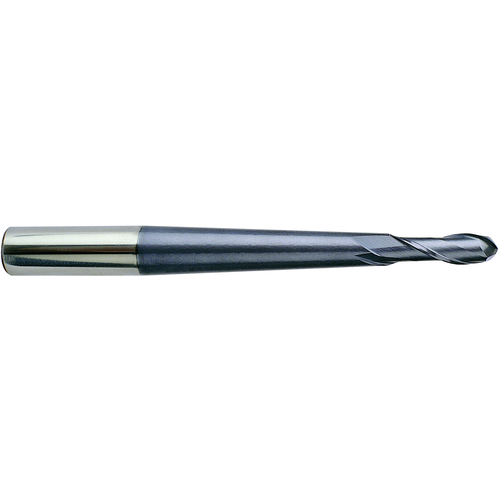

Ball Nose End Mill; 1/4″ Dia. × 3/4″ LOC × 1/2″ Shank Dia. × 7-3/4″ OAL ; 2 FL ; Carbide ; ALTiN ; Series EM979
BN End Mill; 1/4″ Dia. × 3/4″ LOC × 1/2″ Shank Dia. × 7-3/4″ OAL ; 2 FL ; Carbide ; AlTiN ; Series EM979
| Cutting Diameter (DC) | 1/4″ | Applicable Material | | Steel | |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Corner Radius (RE) | 1/8″ |
| Depth of Cut Maximum (APMX) | 3/4″ | Neck Length (LN) | 0.859″ |
| Overall Length (OAL) | 7-3/4″ | End Shape | Ball Nose |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.25″ |
| Coating | AlTiN | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Series/List # | EM979 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
| Usable Length (LU) | 4-7/16″ |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
8.25
Package Width
1/0/1900 18:00
Package Height
0.75
Package Weight
0.585
