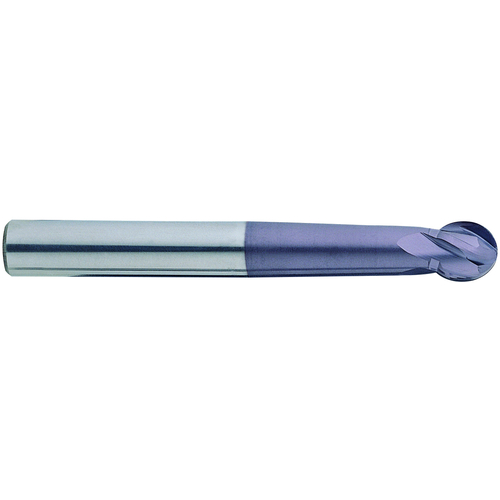

Ball Nose End Mill; 16 mm Dia. × 12.4 mm LOC × 16 mm Shank Dia. × 150 mm OAL ; 4 FL ; Carbide ; ALTiN ; Series EM864
BN End Mill; 16 mm Dia. × 12.4 mm LOC × 16 mm Shank Dia. × 150 mm OAL ; 4 FL ; Carbide ; AlTiN ; Series EM864
| Cutting Diameter (DC) | 16 mm | Applicable Material | | Steel | |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Corner Radius (RE) | 8 mm |
| Depth of Cut Maximum (APMX) | 12.4 mm | Neck Diameter (DN) | 13.4 mm |
| Overall Length (OAL) | 150 mm | Length Group | Long |
| Cutting Edge Material | Carbide | End Shape | Ball Nose |
| Coating | AlTiN | Decimal Equivalent | 0.6299″ |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | EM864 |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 59 mm | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
6.75
Package Width
1/1/1900 0:00
Package Height
1
Package Weight
0.722
