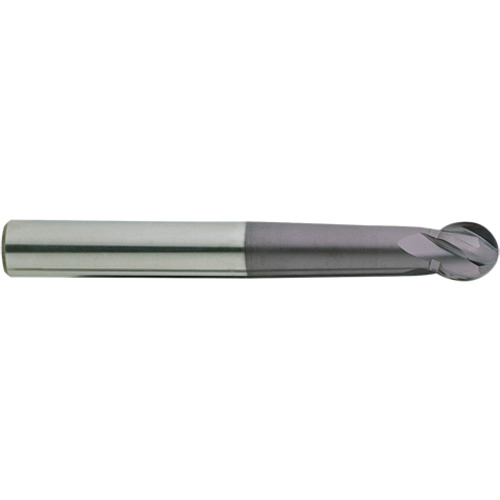

Ball Nose End Mill; 10 mm Dia. × 11 mm LOC × 10 mm Shank Dia. × 100 mm OAL ; 4 FL ; Carbide ; ALTiN ; Series EM673
BN End Mill; 10 mm Dia. × 11 mm LOC × 10 mm Shank Dia. × 100 mm OAL ; 4 FL ; Carbide ; AlTiN ; Series EM673
| Cutting Diameter (DC) | 10 mm | Applicable Material | | Steel | |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Corner Radius (RE) | 5 mm |
| Depth of Cut Maximum (APMX) | 11 mm | Neck Diameter (DN) | 8.2 mm |
| Overall Length (OAL) | 100 mm | Length Group | Long |
| Cutting Edge Material | Carbide | End Shape | Ball Nose |
| Coating | AlTiN | Decimal Equivalent | 0.3937″ |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | EM673 |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 43 mm | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.5
Package Width
1/0/1900 18:00
Package Height
0.75
Package Weight
0.239
