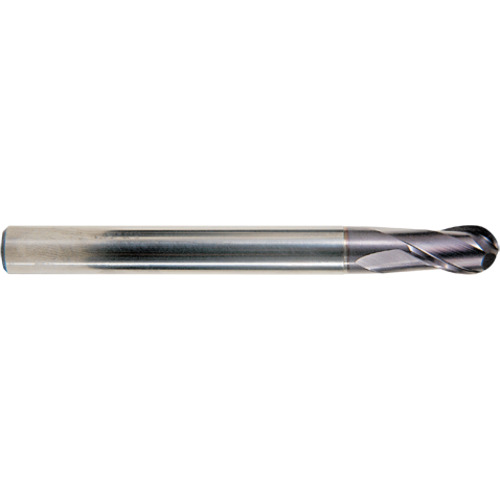

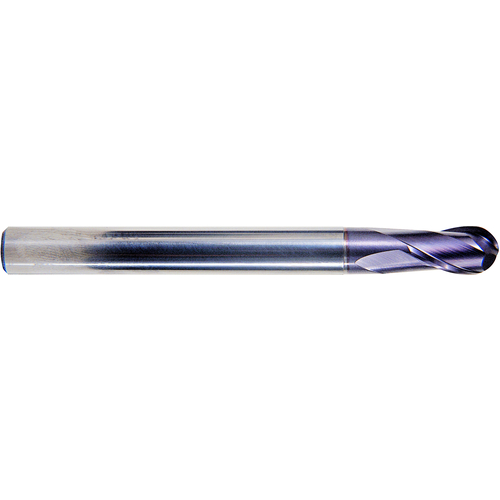

Ball Nose End Mill; 14 mm Dia. × 26 mm LOC × 12 mm Shank Dia. × 120 mm OAL ; 2 FL ; Carbide ; ALTiN ; Series EM899
BN End Mill; 14 mm Dia. × 26 mm LOC × 12 mm Shank Dia. × 120 mm OAL ; 2 FL ; Carbide ; AlTiN ; Series EM899
| Cutting Diameter (DC) | 14 mm | Applicable Material | | Steel | |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Corner Radius (RE) | 7 mm |
| Depth of Cut Maximum (APMX) | 26 mm | Length Group | Medium |
| Overall Length (OAL) | 120 mm | End Shape | Ball Nose |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.5512″ |
| Coating | AlTiN | Measurement Type | Metric |
| Flute Count (NOF) | 2 | Series/List # | EM899 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
5.25
Package Width
1/1/1900 0:00
Package Height
1
Package Weight
0.447
