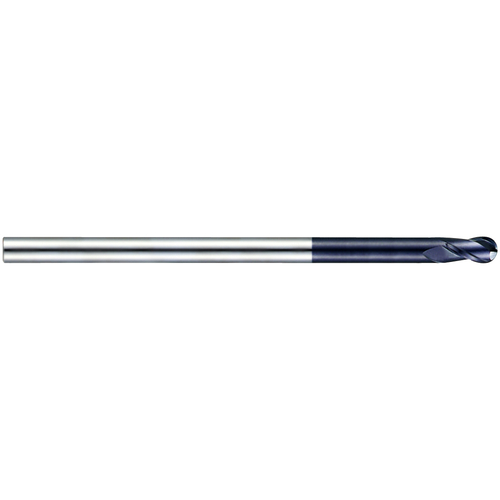

Ball Nose End Mill; 3/32″ Dia. × 1/4″ LOC × 1/8″ Shank Dia. × 3-1/8″ OAL ; 2 FL ; Carbide ; ALTiN ; Series EM962
BN End Mill; 3/32″ Dia. × 1/4″ LOC × 1/8″ Shank Dia. × 3-1/8″ OAL ; 2 FL ; Carbide ; AlTiN ; Series EM962
| Cutting Diameter (DC) | 3/32″ | Applicable Material | | Steel | |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Corner Radius (RE) | 3/64″ |
| Depth of Cut Maximum (APMX) | 1/4″ | Length Group | Long |
| Overall Length (OAL) | 3-1/8″ | End Shape | Ball Nose |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.0938″ |
| Coating | AlTiN | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Series/List # | EM962 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.375
Package Width
1/0/1900 15:00
Package Height
0.625
Package Weight
0.031
