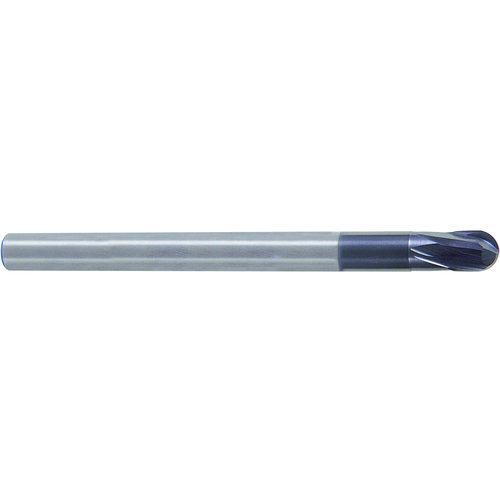

Ball Nose End Mill; 12 mm Dia. × 12 mm LOC × 12 mm Shank Dia. × 110 mm OAL ; 2 FL ; Carbide ; ALTiN ; Series EM868
BN End Mill; 12 mm Dia. × 12 mm LOC × 12 mm Shank Dia. × 110 mm OAL ; 2 FL ; Carbide ; AlTiN ; Series EM868
| Cutting Diameter (DC) | 12 mm | Applicable Material | | Steel | Hard Materials | |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Corner Radius (RE) | 6 mm |
| Depth of Cut Maximum (APMX) | 12 mm | Neck Diameter (DN) | 11.9 mm |
| Overall Length (OAL) | 110 mm | Length Group | Stub |
| Cutting Edge Material | Carbide | End Shape | Ball Nose |
| Coating | AlTiN | Decimal Equivalent | 0.4724″ |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 15 Degrees | Series/List # | EM868 |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 24 mm | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.5
Package Width
1/0/1900 18:00
Package Height
0.75
Package Weight
0.388
